What Are Concrete Footings?
Concrete footings are the engineered base elements of any structure — transferring the combined load of the building above into the ground below across a wider bearing area, preventing differential settlement, structural movement, and long-term damage.
- They distribute structural load across a greater soil surface area, reducing pressure on any single point.
- Footing depth and width are engineer-specified based on soil conditions and structural loads — not estimated on site.
- Steel reinforcement (reo bar) gives footings tensile strength to resist cracking and movement under load.
- Soil conditions directly affect footing design — reactive clay and sandy coastal soils are common around Coffs Harbour, and require site-specific specifications.
- Undersized or incorrectly poured footings can lead to cracking, settlement, and structural failure that is expensive to remediate once the structure above is built.
Footing Types We Pour in Coffs Harbour
We pour all standard footing types across the Mid North Coast — the right choice depends on your structure, your soil, and what your engineer specifies.
What We Pour Footings For
Footings are required across a wide range of residential and commercial structures — here’s where we work most commonly across the Coffs Harbour region.
Homes & Extensions: Engineer-designed, council-approved, and subject to inspection hold points. We place reinforcement to specified tolerances and coordinate with the certifier before every pour.

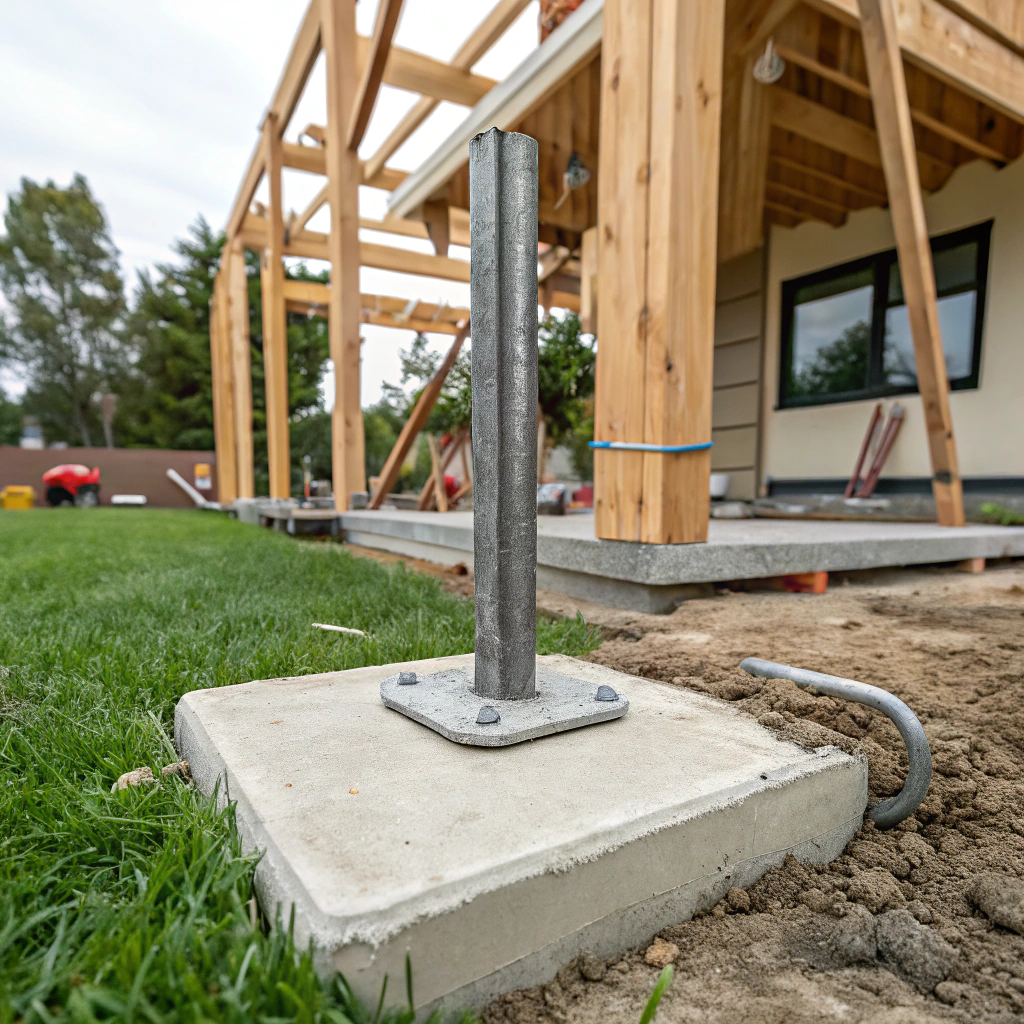

Pergolas & Alfresco Areas: The most common footing request we receive in Coffs Harbour — correctly sized for structural loads and compliant with building approval where required.
Sheds & Outbuildings: Perimeter edge beams and thickened strips form the structural base. Shed footings are frequently underspecified by owners — correct sizing determines longevity.
Retaining Walls; Footings must resist both vertical load and horizontal soil pressure. Engineer input is standard on walls over a specified height.
Fence & Gate Posts: Correct depth and concrete volume around the post base is important, particularly in Coffs Harbour’s high-rainfall environment, where ground movement is common.
Commercial & Light Industrial: Beyond residential scale, formal engineering documentation is standard. We’re experienced working on that documentation across commercial projects throughout the Mid North Coast.
Why Coffs Harbour Soil and Climate Conditions Matter for Footing Design
Reactive clay soils found across suburban Coffs Harbour — particularly through Toormina, Boambee East, and Korora — expand and contract with moisture changes, meaning edge beams need to go deeper than they would on a stable site. Closer to the coast around Woolgoolga and Sandy Beach, sandy soils present a different challenge — bearing capacity needs to be assessed before footing dimensions are finalised. Coffs Harbour’s high seasonal rainfall adds another layer of complexity: open excavations can deteriorate quickly, and pours need to be scheduled and executed promptly once the hole is open. The coastal environment also affects material selection — concrete durability and reinforcement cover requirements are influenced by salt-laden air in properties close to the Pacific. We’re not applying a one-size template to every job — we’re drawing on direct experience with Mid North Coast conditions to make the right calls on every site we work on.
Working from the Engineer Specifications
For any project requiring council approval or carrying a significant structural load, footings are engineer-designed — the dimensions, reinforcement configuration, concrete grade, and cover requirements are all documented before we set foot on site. A lot of homeowners assume the concretor makes those calls on the day. On a properly run job, that’s not how it works. The engineer’s drawings set the standard, and our role is to execute to that standard with precision — not to interpret or adjust based on what’s easier on the day. We work directly from the provided engineering documentation, placing reinforcement to the specified cover and dimensions, and coordinating inspection hold points with the certifier before any pour proceeds. This is standard practice on every qualifying project we take on — not an add-on, and not something that gets skipped when a job is running to a tight schedule.
The Footing Construction Process
Here’s what happens between the engineer’s drawing and the finished pour on every footing job we complete across the Coffs Harbour region.
Excavation: We excavate to the specified depth and width, then inspect the exposed surface to confirm actual soil conditions match what the engineer assumed when designing the footing.

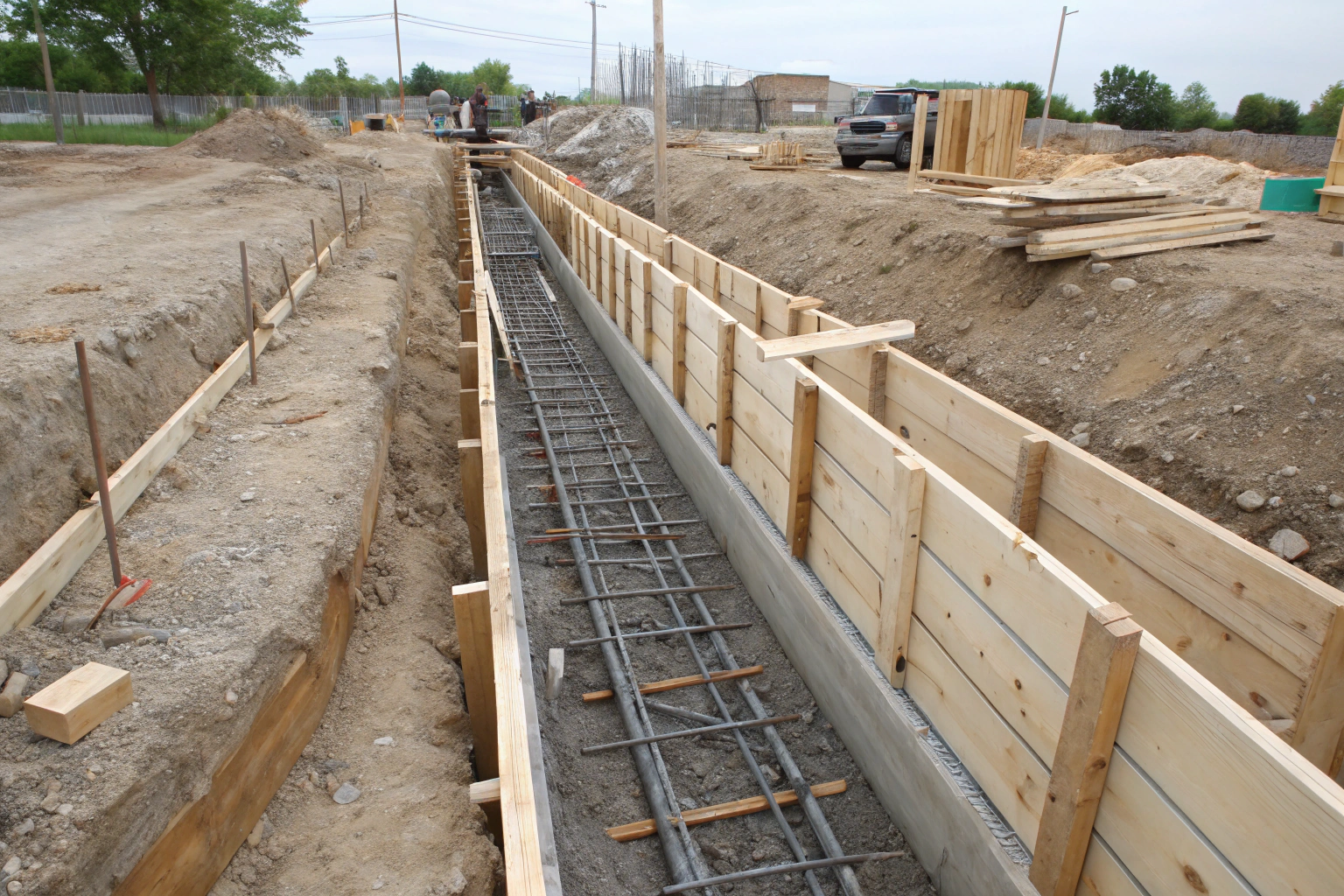

Reinforcement Placement & Inspection Hold Points: Reo is placed to the specified cover and configuration before anything else proceeds. A council inspector or private certifier must sign off before the pour begins — pouring before that inspection is complete can mean mandatory removal and repour at high cost, entirely avoidable with correct scheduling.
The Pour: Concrete is placed, consolidated, and finished to specified tolerances using the engineer-specified mix grade — not a generic mix selected on the day.
Curing: The footing needs adequate curing time before any structure above is erected. In Coffs Harbour’s heat and humidity, curing conditions need active management to make sure compressive strength develops as the engineer intended.
Areas We Service Around Coffs Harbour
We’re a locally based contractor servicing the full Mid North Coast region — not a fly-in operator quoting jobs we’ve never seen in person. Our footwork runs across the Coffs Harbour CBD fringe, Toormina, Boambee East, Sawtell, Moonee Beach, Korora, Woolgoolga, and Sandy Beach, through to Bellingen, Nambucca Heads, and Grafton. If your project sits outside those areas, get in touch anyway — if we can get there and do the job properly, we will.
Concrete Footings Coffs Harbour — Frequently Asked Questions
For any structure requiring council approval — homes, extensions, retaining walls over a certain height — yes, engineer-designed footings are required. For smaller structures like pergolas and sheds, it depends on the scope and your certifier’s requirements. We’ll tell you upfront what’s needed
It depends on your soil classification and what the engineer specifies. On reactive clay sites common across Toormina and Boambee East, edge beams typically need to go deeper than they would on stable ground. We don’t quote a standard depth — we work from the specification.
A footing transfers structural load into the ground. A slab is the floor surface above it. On some systems, like raft and waffle pod, they’re integrated into a single engineered unit — but they serve different structural functions.
We manage scheduling carefully around Coffs Harbour’s rainfall patterns. An open excavation can deteriorate quickly after heavy rain, and we won’t pour into compromised ground or standing water. Getting the timing right is part of doing the job properly.
Generally, a minimum of seven days before structural loads are applied, though engineer specifications may require longer. In Coffs Harbour’s heat and humidity, we actively manage curing conditions — rushing this stage compromises the concrete’s compressive strength.
The certifier can require the footing to be broken out and repoured at the owner’s or contractor’s expense. We coordinate inspection hold points as a matter of course — it’s not a step we skip under any circumstances.
It depends on the size and type of structure. Many pergolas fall under exempt development, but larger or attached structures often require approval. We recommend checking with your certifier before work begins — we can point you in the right direction.
Get Your Free On-Site Quote for Concrete Footings in Coffs Harbour
Footings are not the place to cut corners or take chances on a contractor who doesn’t know the ground they’re working with. We’re locally based, we know Mid North Coast soil conditions, and we work from engineer-provided specs to get the job done right the first time — whether you’re in Sawtell, Woolgoolga, Toormina, Moonee Beach, or anywhere across the Coffs Harbour region.
Tell us about your project, and we’ll come to you. No obligation, no pressure — just a free on-site assessment and a straight answer on what your job needs.
